Optimum Designs,

Scalable & Affordable

Products

Calixto System’s optimum SOM’s are ideal “Brain” for customer’s product development. Right processor selection, availability of extensive interfaces
and optimum design makes our SOM scalable and yet affordable.

Calixto SOM’s are ready to run operating systems like Linux, Android and WinCE. It also supports TI’s Starterware software & real time operating systems like VxWorks, QNX, FreeRTOS, etc.

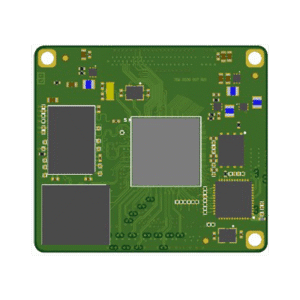

AM62x VERSA SOM

  • Texas Instruments AM62x Processor
  • Quad Core Cortex A53, 1.4GHz
  • 3D GPU
  • Cortex M4F, 400MHz
  • 1/2 GB DDR4 RAM
  • 2/8 MB SPI NOR Flash
  • 8/16 GB EMMC
  • 2 x SD/MMC
  • 1 x Onboard Gigabit Ethernet PHY
  • 1 x Gbit Ethernet MAC
  • 1 x LVDS
  • 1 x MIPI-CSI
  • 1 x USB OTG
  • 1 x USB Host
  • 9 x UARTs
  • 5 x SPI
  • 3 x CAN
  • 6 x I2C
  • 3 x McASP
  • PWM Outputs
  • 24 Bit RGB Display Interface
  • GPIOs
  •  RTC
  • 260 Pin SODIMM Interface Connector
  • 3.3V Operation
  • Commercial/Industrial Grade Variants
Enquiry

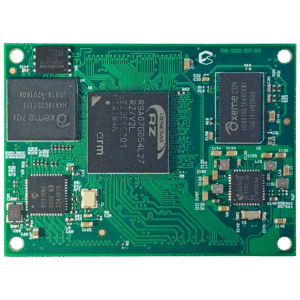

RZV2L OPTIMA SOM

  • Renesas RZ/G2L Processor
  • Dual Core Cortex A55, 1.2GHz
  • DRP-AI, AI Accelerator
  • 3D GPU, ARM Mali-G31
  • Cortex M33, 200MHz
  • 1/2 GB DDR4 RAM
  • 2/8 MB SPI NOR Flash
  • 4/8/16 GB EMMC
  • 1 x SD/MMC
  • 1 x Onboard Gigabit Ethernet PHY
  • 1 x Gbit Ethernet MAC
  • 1 x MIPI-DSI
  • 1 x MIPI-CSI
  • 1 x USB OTG
  • 1 x USB Host
  • 3 x UARTs
  • 2 x SPI
  • 2 x CAN
  • 3 x I2C
  • 4 x SSI
  • PWM Outputs
  • 24 Bit RGB Display Interface
  • Parallel Camera
  • GPIOs
  •  RTC
  • 2x 100, 1x 70 PIN Hirose Connectors
  • 3.3V Operation
  • Dimension 55 x 40 x 3 mm
  • Commercial/Industrial Grade Variants
SOM Documentation Enquiry

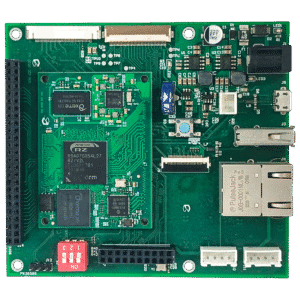

RZV2L OPTIMA SOM EVB

  • 1 x Gigabit Ethernet connector.
  • 1 x USB2.0 OTG Micro B type connector.
  • 1 x USB2.0 Host Type A connector.
  • Debug Serial connector.
  • RTC with Super Capacitor.
  • 1 x Micro SD-Card slot..
  • 24 bit Parallel LCD Connector.
  • MIPI DSI Connector.
  • MIPI CSI Connector.
  • Parallel Camera Connector.
  • 1 x CAN interface through Relimate connector.
  • 1 x RS485 interface through Relimate connector.
  • 12V DC Input connector.
  • ​Boot Selection switch.
  • 50 pin expansion connectors exposing interfaces like SPI, I2C, UART, ADC, SSI, and GPIOs etc.
Enquiry

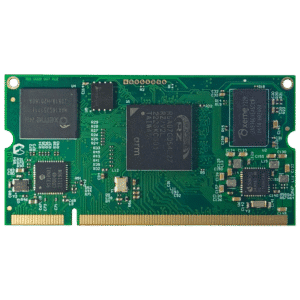

RZV2L VERSA SOM

  • Renesas RZ/G2L Processor
  • Dual Core Cortex A55, 1.2GHz
  • DRP-AI, AI Accelerator
  • 3D GPU, ARM Mali-G31
  • Cortex M33, 200MHz
  • 1/2 GB DDR4 RAM
  • 2/8 MB SPI NOR Flash
  • 4/8/16 GB EMMC
  • 1 x SD/MMC
  • 1 x Onboard Gigabit Ethernet PHY
  • 1 x Gbit Ethernet MAC
  • 1 x MIPI-DSI
  • 1 x MIPI-CSI
  • 1 x USB OTG
  • 1 x USB Host
  • 3 x UARTs
  • 2 x SPI
  • 2 x CAN
  • 3 x I2C
  • 4 x SSI
  • PWM Outputs
  • 24 Bit RGB Display Interface
  • GPIOs
  •  RTC
  • 200 Pin SODIMM Interface Connector
  • 3.3V Operation
  • Dimension 67.59 x 35 mm
  • Commercial/Industrial Grade Variants
SOM Documentation Enquiry

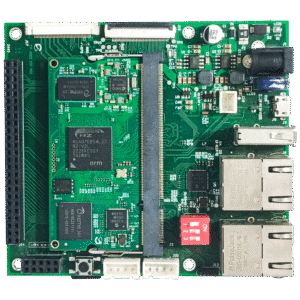

RZV2L VERSA SOM EVB

  • 2 x Gigabit Ethernet connector.
  • 1 x USB2.0 OTG Micro B type connector.
  • 1 x USB2.0 Host Type A connector.
  • Debug Serial connector.
  • RTC with Super Capacitor.
  • 1 user configurable push button and two user configurable LEDs.
  • 1 x Micro SD-Card slot..
  • 24 bit Parallel LCD Connector.
  • MIPI DSI Connector.
  • MIPI CSI Connector.
  • 1 x CAN interface through Relimate connector.
  • 1 x RS485 interface through Relimate connector.
  • 12V DC Input connector.
  • ​Boot Selection switch.
  • 50 pin expansion connectors exposing interfaces like SPI, I2C, UART, ADC, SSI, and GPIOs etc.
Enquiry

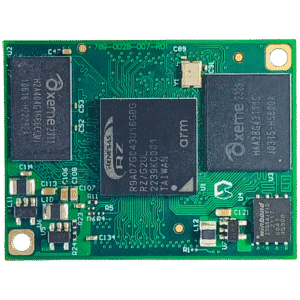

RZG2UL TINY SOM

  • Renesas RZ/G2UL Processor
  • Single Core Cortex A55, 1GHz
  • Cortex M33, 200MHz
  • 256/512/1024 MB DDR3 RAM
  • 2/8 MB SPI NOR Flash
  • 8/16 GB EMMC
  • 1 x SD/MMC
  • 1 x Gbit Ethernet MAC
  • 1 x MIPI-CSI
  • 1 x USB OTG
  • 1 x USB Host
  • 4 x UARTs
  • 3 x SPI
  • 2 x CAN
  • 4 x I2C
  • 4 x SSI
  • PWM Outputs
  • GPIOs
  • 2x 70 PIN Hirose Connectors
  • 3.3V Operation
  • Dimension 40 x 35 mm
  • Commercial/Industrial Grade Variants
SOM Documentation Enquiry

RZG2UL TINY SOM EVB

  • 1 x Gigabit Ethernet connector.
  • 1 x USB2.0 OTG Micro B type connector.
  • 1 x USB2.0 Host Type A connector.
  • Debug Serial connector.
  • RTC with Super Capacitor.
  • 1 user configurable push button and two user configurable LEDs.
  • 1 x Micro SD-Card slot.
  • MIPI CSI Connector.
  • 1 x CAN interface through Relimate connector.
  • 1 x RS485 interface through Relimate connector.
  • 12V DC Input connector.
  • ​Boot Selection switch.
  • 50 pin expansion connectors exposing interfaces like SPI, I2C, UART, ADC, SSI, and GPIOs etc.
Enquiry

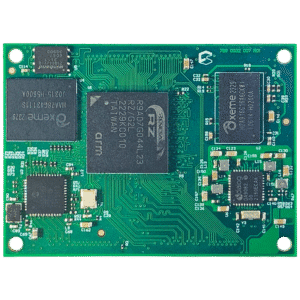

RZG2L OPTIMA SOM

  • Renesas RZ/G2L Processor
  • Dual Core Cortex A55, 1.2GHz
  • 3D GPU, ARM Mali-G31
  • Cortex M33, 200MHz
  • 1/2 GB DDR4 RAM
  • 2/8 MB SPI NOR Flash
  • 4/8/16 GB EMMC
  • 1 x SD/MMC
  • 1 x Onboard Gigabit Ethernet PHY
  • 1 x Gbit Ethernet MAC
  • 1 x MIPI-DSI
  • 1 x MIPI-CSI
  • 1 x USB OTG
  • 1 x USB Host
  • 3 x UARTs
  • 2 x SPI
  • 2 x CAN
  • 3 x I2C
  • 4 x SSI
  • PWM Outputs
  • 24 Bit RGB Display Interface
  • Parallel Camera
  • GPIOs
  •  RTC
  • 2x 100, 1x 70 PIN Hirose Connectors
  • 3.3V Operation
  • Dimension 55 x 40 x 3 mm
  • Commercial/Industrial Grade Variants
SOM Documentation Enquiry

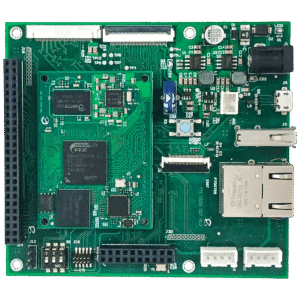

RZG2L OPTIMA SOM EVB

  • 1 x Gigabit Ethernet connector.
  • 1 x USB2.0 OTG Micro B type connector.
  • 1 x USB2.0 Host Type A connector.
  • Debug Serial connector.
  • RTC with Super Capacitor.
  • 1 x Micro SD-Card slot..
  • 24 bit Parallel LCD Connector.
  • MIPI DSI Connector.
  • MIPI CSI Connector.
  • Parallel Camera Connector.
  • 1 x CAN interface through Relimate connector.
  • 1 x RS485 interface through Relimate connector.
  • 12V DC Input connector.
  • ​Boot Selection switch.
  • 50 pin expansion connectors exposing interfaces like SPI, I2C, UART, ADC, SSI, and GPIOs etc.
Enquiry

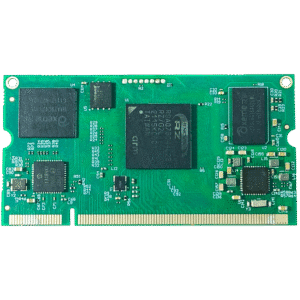

RZG2L VERSA SOM

  • Renesas RZ/G2L Processor
  • Dual Core Cortex A55, 1.2GHz
  • 3D GPU, ARM Mali-G31
  • Cortex M33, 200MHz
  • 1/2 GB DDR4 RAM
  • 2/8 MB SPI NOR Flash
  • 4/8/16 GB EMMC
  • 1 x SD/MMC
  • 1 x Onboard Gigabit Ethernet PHY
  • 1 x Gbit Ethernet MAC
  • 1 x MIPI-DSI
  • 1 x MIPI-CSI
  • 1 x USB OTG
  • 1 x USB Host
  • 3 x UARTs
  • 2 x SPI
  • 2 x CAN
  • 3 x I2C
  • 4 x SSI
  • PWM Outputs
  • 24 Bit RGB Display Interface
  • GPIOs
  •  RTC
  • 200 Pin SODIMM Interface Connector
  • 3.3V Operation
  • Dimension 67.59 x 35 mm
  • Commercial/Industrial Grade Variants
SOM Documentation Enquiry

RZG2L VERSA SOM EVB

  • 2 x Gigabit Ethernet connector.
  • 1 x USB2.0 OTG Micro B type connector.
  • 1 x USB2.0 Host Type A connector.
  • Debug Serial connector.
  • RTC with Super Capacitor.
  • 1 user configurable push button and two user configurable LEDs.
  • 1 x Micro SD-Card slot..
  • 24 bit Parallel LCD Connector.
  • MIPI DSI Connector.
  • MIPI CSI Connector.
  • 1 x CAN interface through Relimate connector.
  • 1 x RS485 interface through Relimate connector.
  • 12V DC Input connector.
  • ​Boot Selection switch.
  • 50 pin expansion connectors exposing interfaces like SPI, I2C, UART, ADC, SSI, and GPIOs etc.
Enquiry

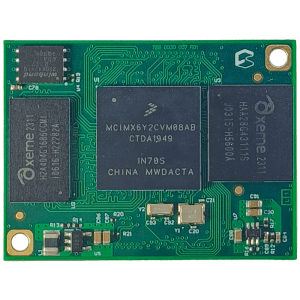

IMX6ULL TINY SOM

  • NXP i.MX 6ULL Processor
  • ARM Cortex A7, 900MHz
  • 256/512/1024 MB DDRIII RAM
  • 2/8 MB SPI NOR Flash
  • 2/4/8 GB EMMC
  • 1 x SD/MMC
  • 1 x Onboard 10/100 Ethernet PHY
  • 1 x 10/100 Ethernet MAC
  • 2 x USB OTG
  • 8 x UARTs
  • 4 x SPI
  • 2 x CAN
  • 4 x I2C
  • 8 x PWM Outputs
  • 24 Bit RGB Display Interface
  • SPDIF Tx/Rx
  • SAI
  • GPIOs
  •  RTC
  • 2 x 70 Pin Hirose Connector Interface
  • 3.3V Operation
  • Dimension 40 x 35 mm
  • Commercial/Industrial Grade Variants
SOM Documentation Enquiry

IMX6ULL TINY SOM EVB

  • 1 x 10/100BaseT - RJ45 Ethernet connector.
  • 1 x USB2.0 OTG Micro B type connector.
  • 1 x USB2.0 Host Type A connector.
  • Debug Serial connector.
  • On board External RTC with Super Capacitor.
  • 1 user configurable push button and two user configurable LEDs.
  • 1 x Micro SD-Card slot..
  • 24 bit Parallel LCD Connector.
  • 1 x CAN interface through Relimate connector.
  • 1 x RS485 interface through Relimate connector.
  • 12V DC Input connector.
  • ​Boot Selection switch.
  • 50 pin expansion connectors exposing interfaces like SPI, I2C, UART, and GPIOs etc.
Enquiry

IMX6ULL STAMP SOM

  • NXP i.MX 6ULL
  • 256/512/1024 MB DDRIII RAM
  • 2/8 MB SPI NOR Flash
  • 2/4/8 GB EMMC
  • 1 x SD/MMC
  • 1 x Onboard 10/100 Ethernet PHY
  • 1 x 10/100 Ethernet MAC
  • 2 x USB OTG
  • 5 x UARTs
  • 3 x SPI
  • 2 x CAN
  • 4 x I2C
  • 8 x PWM Outputs
  • 24 Bit RGB Display Interface
  • SPDIF Tx/Rx
  • SAI
  • GPIOs
  •  RTC
  • 2 x 90 Pin Interface Connector
  • 3.3V Operation
  • Dimension 45 x 45 mm
  • Commercial/Industrial Grade Variants
Enquiry

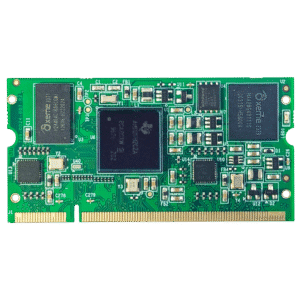

AMIC110 VERSA SOM

  • TI AMIC110, PRU-ICSS
  • 256/512 MB DDRIII RAM
  • 2/8 MB SPI NOR Flash
  • 4/8 GB EMMC
  • 2 x Onboard 10/100 Ethernet PHY - PRU MAC
  • 1 x PRU UART
  • PRU PWM
  • PRU GPIO
  • 2 x SD/MMC
  • 2 x USB OTG
  • 4 x UARTs
  • 2 x SPI
  • 2 x CAN
  • 3 x I2C
  • 8 x Analog Inputs
  • GPIOs
  •  RTC
  • 200 Pin SODIMM Interface Connector
  • 3.3V Operation
  • Dimension 67.6 x 33.6 mm
  • Commercial/Industrial Grade Variants
Enquiry

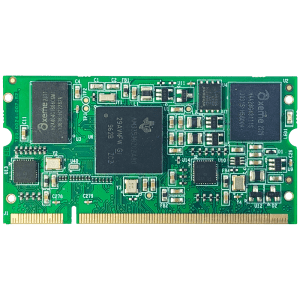

AM3359 PRU VERSA SOM

  • TI AM3359, PRU-ICSS
  • 256/512 MB DDRIII RAM
  • 2/8 MB SPI NOR Flash
  • 4/8 GB EMMC
  • 2 x Onboard 10/100 Ethernet PHY - PRU MAC
  • 1 x PRU UART
  • PRU PWM
  • PRU GPIO
  • 2 x SD/MMC
  • 2 x USB OTG
  • 4 x UARTs
  • 2 x SPI
  • 2 x CAN
  • 3 x I2C
  • 8 x Analog Inputs
  • GPIOs
  •  RTC
  • 200 Pin SODIMM Interface Connector
  • 3.3V Operation
  • Dimension 67.6 x 33.6 mm
  • Commercial/Industrial Grade Variants
Enquiry

AM3359 PRU VERSA SOM EVB

  • 2 x 10/100BaseT - RJ45 Ethernet connector.
  • 1 x USB2.0 OTG Micro AB type connector.
  • 1 x USB2.0 Host Type A connector.
  • Debug port through USB connector.
  • On board External RTC with back up battery.
  • On board 14 Pin JTAG.​​
  • On board 128/256 Nand Flash
  • 1 user configurable push button and two user configurable LEDs.
  • 1 x Micro SD-Card slot..
  • 1 x RS232 interface through DB9 connectors..
  • 12V DC Input connector.
  • ​Boot Selection switch.
  • 30 pin and 40 pin expansion connectors exposing interfaces like SPI, I2C, UART, VPIF, EMIF and GPIOs etc.
Enquiry

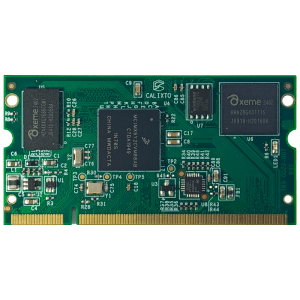

IMX6ULL VERSA SOM

  • NXP i.MX 6ULL
  • 256/512/1024 MB DDRIII RAM
  • 2/8 MB SPI NOR Flash
  • 2/4/8 GB EMMC
  • 1 x SD/MMC
  • 1 x Onboard 10/100 Ethernet PHY
  • 1 x 10/100 Ethernet MAC
  • 2 x USB OTG
  • 5 x UARTs
  • 3 x SPI
  • 2 x CAN
  • 4 x I2C
  • 8 x PWM Outputs
  • 24 Bit RGB Display Interface
  • SPDIF Tx/Rx
  • SAI
  • GPIOs
  •  RTC
  • 200 Pin SODIMM Interface Connector
  • 3.3V Operation
  • Dimension 67.6 x 33.6 mm
  • Commercial/Industrial Grade Variants
Enquiry

IMX6ULL VERSA SOM EVB

  • 2 x 10/100BaseT - RJ45 Ethernet connector.
  • 1 x USB2.0 OTG Micro AB type connector.
  • 1 x USB2.0 Host Type A connector.
  • Debug port through USB connector.
  • On board External RTC with back up battery.
  • On board 14 Pin JTAG.​​
  • On board 128/256 Nand Flash
  • 1 user configurable push button and two user configurable LEDs.
  • 1 x Micro SD-Card slot..
  • 1 x RS232 interface through DB9 connectors..
  • 1 x RS485 interface through Relimate connector.
  • 12V DC Input connector.
  • ​Boot Selection switch.
  • 2 x 30 pin expansion connectors exposing interfaces like SPI, I2C, UART, VPIF, EMIF and GPIOs etc.
Enquiry

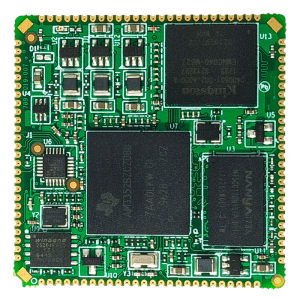

AM335X STAMP NXT SOM

  • TI AM3352/4/9
  • 256/512 MB DDRIII RAM
  • 2/8 MB SPI NOR Flash
  • 2/4/8 GB EMMC
  • 2 x SD/MMC
  • 1 x Onboard 10/100 Ethernet PHY
  • 2 x USB OTG
  • 5 x UARTs
  • 1 x SPI
  • 2 x CAN
  • 3 x I2C
  • 1 x McASP
  • 3 x PWM Outputs
  • 16 Bit RGB Display Interface
  • 16 Bit GPMC Interface
  • 8 x Analog Inputs (with 5 channel Resistive Touch Controller)
  • GPIOs
  •  RTC
  • 1.27mm pitch 104 Pin Boarder Pad Interface
  • 3.3V Operation
  • Dimension 40 x 40 mm
  • Commercial/Industrial Grade Variants
Enquiry

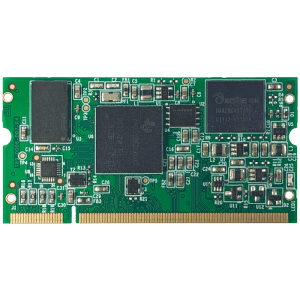

AM335X VERSA NXT SOM WITH EMMC

  • TI AM3352/4/9
  • 256/512 MB DDRIII RAM
  • 2/8 MB SPI NOR Flash
  • 2 x SD/MMC
  • 2/4/8 GB EMMC
  • 1 x Onboard 10/100 Ethernet PHY
  • 1 x 10/100 Ethernet MAC
  • 2 x USB OTG
  • 6 x UARTs
  • 2 x SPI
  • 2 x CAN
  • 3 x I2C
  • 2 x McASP
  • 3 x PWM Outputs
  • 24 Bit RGB Display Interface
  • 16 Bit GPMC Interface
  • 8 x Analog Inputs (with 5 channel Resistive Touch Controller)
  • GPIOs
  •  RTC
  • 200 Pin SODIMM Interface Connector
  • 3.3V Operation
  • Dimension 67.6 x 33.6 mm
  • Commercial/Industrial Grade Variants
Enquiry

AM335X VERSA NXT SOM WITHOUT EMMC

  • TI AM3352/4/9
  • 256/512 MB DDRIII RAM
  • 2/8 MB SPI NOR Flash
  • 3 x SD/MMC
  • 1 x Onboard 10/100 Ethernet PHY
  • 1 x 10/100 Ethernet MAC
  • 2 x USB OTG
  • 6 x UARTs
  • 2 x SPI
  • 2 x CAN
  • 3 x I2C
  • 2 x McASP
  • 3 x PWM Outputs
  • 24 Bit RGB Display Interface
  • 16 Bit GPMC Interface
  • 8 x Analog Inputs (with 5 channel Resistive Touch Controller)
  • GPIOs
  •  RTC
  • 200 Pin SODIMM Interface Connector
  • 3.3V Operation
  • Dimension 67.6 x 33.6 mm
  • Commercial/Industrial Grade Variants
Enquiry

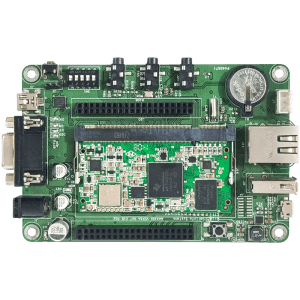

AM335X VERSA NXT SOM EVB

  • 1 x 10/100BaseT - RJ45 Ethernet connector.
  • 1 x USB2.0 OTG Micro AB type connector.
  • 1 x USB2.0 Host Type A connector.
  • Debug port through USB connector.
  • On board External RTC with back up battery.
  • On board 14 Pin JTAG.​​
  • On board 128/256 Nand Flash
  • 1 user configurable push button and two user configurable LEDs.
  • 4.3 Inch LCD board with resistive/capacitive touch panel.
  • 3 x 3.5mm jack for AUDIO IN ,AUDIO OUT and MIC IN.
  • 1 x Micro SD-Card slot..
  • 1 x RS232 interface through DB9 connectors..
  • 1 x RS485 interface through Relimate connector.
  • 12V DC Input connector.
  • ​Boot Selection switch.
  • 2 x 50 pin expansion connectors exposing interfaces like SPI, I2C, UART, VPIF, EMIF and GPIOs etc.
Enquiry

AM335X STAMP SOM

  • TI AM3352/4/9
  • 128/256 MB DDRII RAM
  • 2/8 MB SPI NOR Flash
  • 2 x SD/MMC
  • 1 x Onboard 10/100 Ethernet PHY
  • 2 x USB OTG
  • 5 x UARTs
  • 1 x SPI
  • 2 x CAN
  • 3 x I2C
  • 1 x McASP
  • 3 x PWM Outputs
  • 16 Bit RGB Display Interface
  • 16 Bit GPMC Interface
  • 8 x Analog Inputs (with 5 channel Resistive Touch Controller)
  • GPIOs
  •  RTC
  • 1.27mm pitch 104 Pin Boarder Pad Interface
  • 3.3V Operation
  • Dimension 40 x 40 mm
  • Commercial/Industrial Grade Variants
Enquiry

AM335X STAMP SOM EVM

  • 1 x 10/100BaseT - RJ45 Ethernet connector.
  • 1 x USB2.0 OTG Micro AB type connector.
  • 1 x USB2.0 Host Type A connector.
  • Debug port through USB connector
  • On board External RTC with back up battery
  • On board 14 Pin JTAG
  • One user configurable push button and two user configurable LEDs.
  • 4.3 Inch LCD board with resistive/capacitive touch panel
  • 3 x 3.5mm jack for AUDIO IN ,AUDIO OUT and MIC IN.
  • 1 x Micro SD-Card slot.
  • 1 x RS232 interface through DB9 connectors.
  • 1 x RS485 interface through Relimate connector
  • 12V DC Input connector.
  • Boot Selection switch.
  • 2 x 50 pin expansion connectors exposing interfaces like SPI, I2C, UART, VPIF, EMIF and GPIOs etc
Enquiry

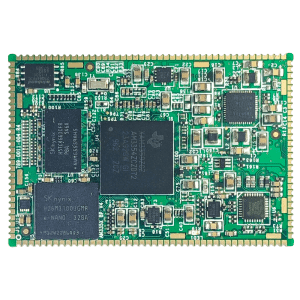

AM335X OPTIMA SOM

  • TI AM3352/4/9
  • 256/512 MB DDRIII RAM
  • 2/8 MB SPI NOR Flash
  • 2 x SD/MMC
  • 2/4/8 GB EMMC
  • 1 x Onboard 10/100 Ethernet PHY
  • 1 x 10/100 Ethernet MAC
  • 2 x USB OTG
  • 6 x UARTs
  • 2 x SPI
  • 2 x CAN
  • 3 x I2C
  • 2 x McASP
  • 3 x PWM Outputs
  • 24 Bit RGB Display Interface
  • 16 Bit GPMC Interface
  • 8 x Analog Inputs (with 5 channel Resistive Touch Controller)
  • GPIOs
  •  RTC
  • 1.27mm pitch 144 Pin Boarder Pad Interface
  • 3.3V Operation
  • Dimension 60 x 40 mm
  • Commercial/Industrial Grade Variants
Enquiry

AM180X VERSA SOM

  • TI AM1802/08 @200/300/375/456MHz
  • 128 MB DDRII RAM
  • 128 NAND Flash
  • 2/8 MB SPI Flash
  • 2 x 4bit SD/MMC
  • 10/100 Ethernet PHY
  • 1 x USB OTG
  • 1 x USB HOST
  • 3 x UARTs
  • 1 x SPI
  • GPIOs
  • RTC
  • Optional 4 Channel 10 bit ADC
  • JTAG Interface
  • 16 Bit RGB Display Interface
  • 16 Bit Video Port Interface
  • 16 Bit EMIF Interface
  • 200 Pin SODIMM Interface Connector
  • 3.3V Operation
  • Dimension 67.6 x 33.6 mm
  • Commercial/Industrial Grade Variants
Enquiry

AM180X VERSA SOM EVM

  • 1 x 10/100BaseT - RJ45 Ethernet connector.
  • 1 x USB2.0 OTG Mini AB type connector.
  • 1 x USB2.0 Host Type A connector.
  • 4.3 Inch LCD board with resistive touch panel
  • 3 x 3.5mm jack for AUDIO IN ,AUDIO OUT and MIC IN.
  • 1 x Micro SD-Card slot.
  • 1 x RS232 interface through DB9 connectors.
  • 5V DC Input connector.
  • Boot Selection switch.
  • 2 x 50 pin expansion connectors exposing interfaces like SPI, I2C, UART, VPIF, EMIF and GPIOs etc
Enquiry

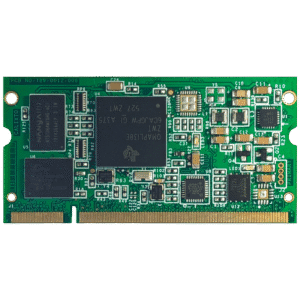

OMAP L13X VERSA SOM

  • TI OMAPL132/38
  • 128 MB DDRII RAM
  • 128 NAND Flash
  • 2/8 MB SPI Flash
  • 2 x 4bit SD/MMC
  • 10/100 Ethernet PHY
  • 1 x USB OTG
  • 1 x USB HOST
  • 3 x UARTs
  • 1 x SPI
  • GPIOs
  • RTC
  • Optional 4 Channel 10 bit ADC
  • JTAG Interface
  • 16 Bit RGB Display Interface
  • 16 Bit Video Port Interface
  • 16 Bit EMIF Interface
  • 200 Pin SODIMM Interface Connector
  • 3.3V Operation
  • Dimension 67.6 x 33.6 mm
  • Commercial/Industrial Grade Variants
Enquiry

OMAP L13X VERSA SOM EVM

  • 1 x 10/100BaseT - RJ45 Ethernet connector.
  • 1 x USB2.0 OTG Mini AB type connector.
  • 1 x USB2.0 Host Type A connector.
  • 4.3 Inch LCD board with resistive touch panel
  • 3 x 3.5mm jack for AUDIO IN ,AUDIO OUT and MIC IN.
  • 1 x Micro SD-Card slot.
  • 1 x RS232 interface through DB9 connectors.
  • 5V DC Input connector.
  • Boot Selection switch.
  • 2 x 50 pin expansion connectors exposing interfaces like SPI, I2C, UART, VPIF, EMIF and GPIOs etc
Enquiry

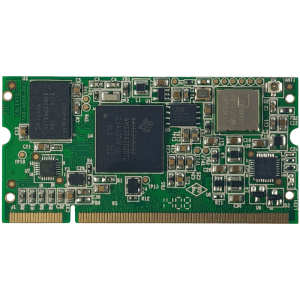

AM335X VERSA NXT SOM WITH WLAN

  • TI AM3352/4/9
  • 256/512 MB DDRIII RAM
  • 2/8 MB SPI NOR Flash
  • 2 x SD/MMC
  • WLAN (b/g/n)and Bluetooth 4.0
  • 1 x Onboard 10/100 Ethernet PHY
  • 1 x 10/100 Ethernet MAC
  • 2 x USB OTG
  • 5 x UARTs
  • 2 x SPI
  • 2 x CAN
  • 3 x I2C
  • 2 x McASP
  • 3 x PWM Outputs
  • 24 Bit RGB Display Interface
  • 16 Bit GPMC Interface
  • 8 x Analog Inputs (with 5 channel Resistive Touch Controller)
  • GPIOs
  • RTC
  • 200 Pin SODIMM Interface Connector
  • 3.3V Operation
  • Dimension 67.6 x 33.6 mm
  • Commercial/Industrial Grade Variants

Enquiry

AM180X STD SOM

  • TI AM1802/08
  • 128 MB DDRII RAM
  • 128 NAND Flash
  • 2 x 4bit SD/MMC
  • 10/100 Ethernet PHY
  • 1 x USB OTG
  • 1 x USB HOST
  • 2 x UARTs
  • 1 x SPI
  • GPIOs
  • RTC
  • Onboard JTAG Interface
  • Integrated Audio CODEC
  • 16 Bit RGB Display Interface
  • 16 Bit Video Port Interface
  • 16 Bit EMIF Interface
  • 2 x 80 Pin Interface Connector
  • 3.3V Operation
  • Dimension 52 x 42 mm
  • Commercial/Industrial
Enquiry

AM180X STD SOM EVM

  • 1 x 10/100BaseT - RJ45 Ethernet connector.
  • 1 x USB2.0 OTG Mini AB type connector.
  • 1 x USB1.1 Host Type A connector.
  • Video Graphics Array (VGA) connector or 4.3 Inch LCD board with resistive touch panel
  • 2 x 3.5mm jack for AUDIO IN and AUDIO OUT.
  • 1 x SD-Card slot.
  • 1 x RS232 interface through DB9 connectors.
  • 5V DC Input connector.
  • Boot Selection switch.
  • 2 x 50 pin expansion connectors exposing interfaces like SPI, I2C, UART,VPIF,EMIF and GPIOs etc
Enquiry

OMAP L13X STD SOM

  • TI OMAPL132/38
  • 128 MB DDRII RAM
  • 128 NAND Flash
  • 2 x 4bit SD/MMC
  • 10/100 Ethernet PHY
  • 1 x USB OTG
  • 1 x USB HOST
  • 2 x UARTs
  • 1 x SPI
  • GPIOs
  • RTC
  • Onboard JTAG Interface
  • Integrated Audio CODEC
  • 16 Bit RGB Display Interface
  • 16 Bit Video Port Interface
  • 16 Bit EMIF Interface
  • 2 x 80 Pin Interface Connector
  • 3.3V Operation
  • Dimension 52 x 42 mm
  • Commercial/Industrial
Enquiry

OMAP L13X STD SOM EVM

  • 1 x 10/100BaseT - RJ45 Ethernet connector.
  • 1 x USB2.0 OTG Mini AB type connector.
  • 1 x USB1.1 Host Type A connector.
  • Video Graphics Array (VGA) connector or 4.3 Inch LCD board with resistive touch panel.
  • 2 x 3.5mm jack for AUDIO IN and AUDIO OUT.
  • 1 x SD-Card slot.
  • 1 x RS232 interface through DB9 connectors.
  • 5V DC Input connector.
  • Boot Selection switch.
  • 2 x 50 pin expansion connectors exposing interfaces like SPI, I2C, UART, VPIF, EMIF and GPIOs etc
Enquiry

Processor Names

HOT DEAL

Feb 5th 2024 :Calixto Systems announces the release of its next-generation System-on-Module (SoM), the RZ/G2L and RZ/V2L OPTIMA SOMs, designed to empower Industrial, Healthcare, Automotive, Embedded vision system and IoT Domains with enhanced performance, flexibility, and scalability. This breakthrough SoM integrates key components such as a dual Cortex-A55 core, AI accelerator, 3D GPU, Cortex-M33 core, dual Gigabit Ethernet, communication interfaces, and I/O interfaces, allowing manufacturers and developers to build smarter, more efficient devices while reducing time-to-market.

Read More

Quick Link

Overview

Newsletter

By subscribing to our mailing list you will always be update with the latest news from us.

We never spam !

© 2024 Calixto . All Rights Reserved.
