AM335x OPTIMA SOM
Value Line, Affordable
Single-core Arm
Cortex-A8
Cryptography
Device identity
Dual 10/100Mbps
Ethernet
SGX530 - Graphics
Accelerator
Product Overview
The AM335x OPTIMA SOM is a versatile System on Module featuring the TI AM335x processor. It boasts a powerful 1GHz Single Core Arm Cortex™-A8 processor with a PRU Real-time co-processor, and incorporates a 3D Graphics Processing Unit (GPU) for enhanced User Interface capabilities, providing an energy flex architecture and built-in security features. Designed for industrial applications, it includes dual CAN bus, dual 10/100 Mbps Ethernets, and industrial temperature grade support. This compact module offers a wide array of peripherals and connectivity options, making it ideal for diverse embedded applications requiring robust performance, Graphical User Interface, and reliability.
Features
Optimized Performance
Unparalleled performance for responsive embedded computing, real-time control, and rich user interfaces while maintaining power efficiency.
Solderable
Ensures robust mechanical integrity, streamlined manufacturing, and enhanced reliability in rugged industrial applications.
Industrial-Grade Reliability
Engineered for exceptional reliability and long-term operation in demanding industrial environments.
Rich I/O and Connectivity
Comprehensive I/O and industrial connectivity options enable seamless integration with a wide range of peripherals and field interfaces.
Specifications
Processor:
- Processor: AM335x
- MPU Core: Arm Cortex-A8
- MPU Frequency: 1GHz
Memory:
- RAM: 256/512/1024MB DDR3L
- eMMC: 4/8Gb
- NOR FLASH: 8MB
Peripheral List:
- 6x UART
- 2x SPI
- 2x CAN
- 3x I2C
- 2x USB 2.0 OTG
- 2x MMC/SD
- 8x ADC Channels
- 3x eHRPWM
- 3x eQEP
Connectivity:
- 2x 10/100 Ethernet(One PHY On-board)
Multimedia:
- 24-bit RGB Parallel Display
- Touch Screen Controller
- 2x McASP
Miscellaneous:
- RTC
- JTAG
- Cryptography
- Device Identity
Design Resources
Software Releases
Technology Use Cases
The E-Mobility revolution is accelerating across the globe. From electric two-wheelers and commercial EVs to smart charging infrastructure and battery management systems, …
In the fast-paced world of embedded systems, time-to-market, scalability, and reliability are critical. This is where System on Modules (SoMs) shine. A …
Resources

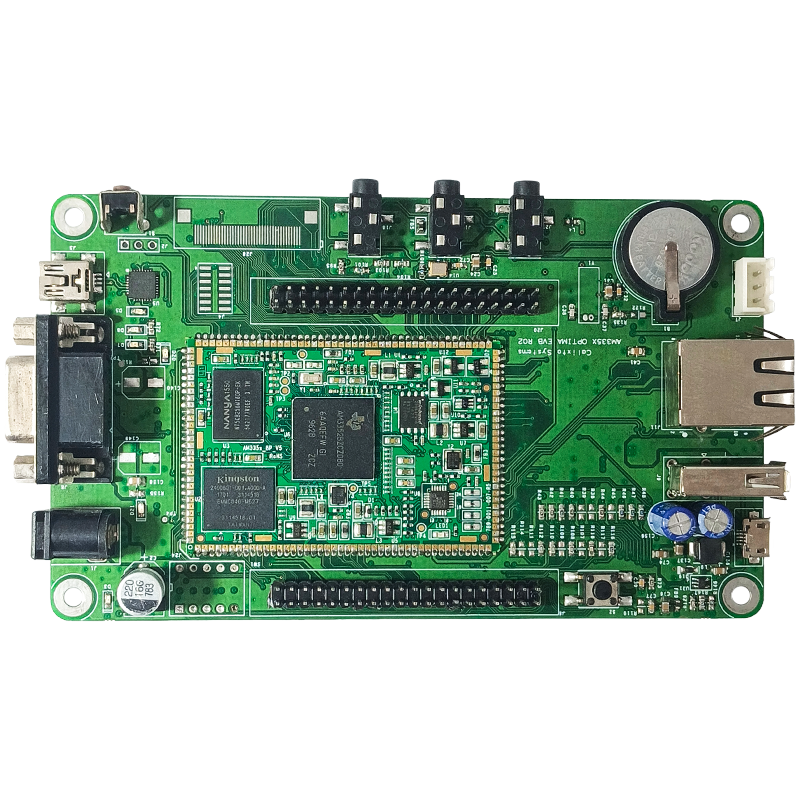

A feature-rich platform designed to accelerate the development and evaluation of applications built on the AM335x OPTIMA SoM. It integrates the TI AM335x processor with a 1GHz Single Cortex™-A8 and a real-time co-processor.
